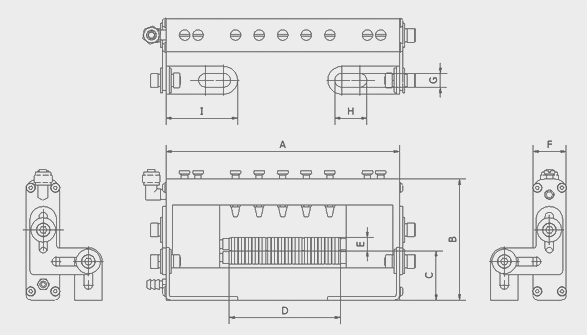

| Micro-Adjusted Lubricator Specifications: |
|
|
A |
B |
C |
D |
E |
E |
G |
H |
I |
AT-65 |
189 |
142 |
57 |
65 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-80 |
204 |
142 |
57 |
80 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-100 |
224 |
142 |
57 |
100 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-150 |
274 |
142 |
57 |
150 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-200 |
324 |
142 |
57 |
200 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-250 |
374 |
142 |
57 |
250 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-300 |
424 |
142 |
57 |
300 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-350 |
474 |
142 |
57 |
350 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-400 |
524 |
142 |
57 |
400 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-450 |
574 |
142 |
57 |
450 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-500 |
624 |
142 |
57 |
500 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-550 |
674 |
142 |
57 |
550 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-600 |
724 |
142 |
57 |
600 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-650 |
774 |
142 |
57 |
650 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-700 |
824 |
142 |
57 |
700 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-750 |
874 |
142 |
57 |
750 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-800 |
924 |
142 |
57 |
800 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-850 |
974 |
142 |
57 |
850 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-900 |
1024 |
142 |
57 |
900 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-950 |
1074 |
142 |
57 |
950 |
Ø32 |
45 |
13 |
30 |
58.5 |
AT-1000 |
1124 |
142 |
57 |
1000 |
Ø32 |
45 |
13 |
30 |
58.5 |
|
| |
| Type |
Wide(W) |
Thick |
| AT-65 |
65 m/m |
0.10~6.0 m/m |
| AT-80 |
80 m/m |
0.10~6.0 m/m |
| AT-100 |
100 m/m |
0.10~6.0 m/m |
| AT-150 |
150 m/m |
0.10~6.0 m/m |
| AT-200 |
200 m/m |
0.10~6.0 m/m |
| AT-250 |
250 m/m |
0.10~6.0 m/m |
| AT-300 |
300 m/m |
0.10~6.0 m/m |
| AT-400 |
400 m/m |
0.10~6.0 m/m |
| AT-500 |
500 m/m |
0.10~6.0 m/m |
| AT-600 |
600 m/m |
0.10~6.0 m/m |
| AT-700 |
700 m/m |
0.10~6.0 m/m |
| AT-800 |
800 m/m |
0.10~6.0 m/m |
| AT-900 |
900 m/m |
0.10~6.0 m/m |
| AT-1000 |
1000 m/m |
0.10~6.0 m/m |
|
- 1)The material lubricator is suitably used for material eith double sides oilling at same time to prolong greatly the service life of pressing mold.
- 2)Aluminum alloy body structure with anodic treatment on surface, that to be beautiful and durable. A mounting bracket is included which suitable to install on all machines body.
- 3)Special micro-adjusting oiling design, the oil volume can be controlled easily depending on the work condition. It could save oil consumption.
- 4)This lubricator adopts high-density wool cotton material with excellent anti-wearing and powerful oil absorbing which is in separate piece model design, easitly to maintenance.
- 5)Filtering mesh is deviced inside the oil barrel then the lubricant can be used again.
- 6)The option of electrical pump lubricator can combine with press for automatic & man power saving operation.
- 7)The upper roller uses multiple nipples for different oil volume adjusting, to meet customer's special requirement.

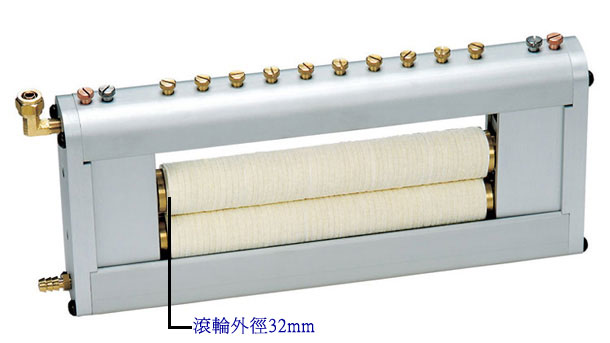

- Upperroller lubricating method:
- Segment reinforcing oil providing is from outside of upper roller, the oil is from the yellow color copper adjusting nipples on the top rail.
- Normal oil providing is from inside of the roller. The oil volume can be adjusted by the two red color copper adjusting nipples on both sides of the top rail.
- Lower roller libricating method:
Normal oil providing is from inside of the roller. The oil volume can be adjusting by the two black color copper adjusting nipples on both sides of the top rail.
|
