| Micro-Adjusted Lubricator Specifications: |
|
|
A |
B |
C |
D |
E |
E |
G |
H |
I |
BT-80 |
198 |
113 |
42 |
80 |
Ø22 |
31 |
13 |
30 |
58.5 |
BT-100 |
218 |
113 |
42 |
100 |
Ø22 |
31 |
13 |
30 |
58.5 |
B T-150 |
268 |
113 |
42 |
150 |
Ø22 |
31 |
13 |
30 |
58.5 |
BT-200 |
318 |
113 |
42 |
200 |
Ø22 |
31 |
13 |
30 |
58.5 |
BT-250 |
368 |
113 |
42 |
250 |
Ø22 |
31 |
13 |
30 |
58.5 |
BT-300 |
418 |
113 |
42 |
300 |
Ø22 |
31 |
13 |
30 |
58.5 |
BT-350 |
468 |
113 |
42 |
350 |
Ø22 |
31 |
13 |
30 |
58.5 |
BT-400 |
518 |
113 |
42 |
400 |
Ø22 |
31 |
13 |
30 |
58.5 |
|
| |
| Type |
Wide(W) |
Thick |
| BT-80 |
80 m/m |
0.10~2.0 m/m |
| BT-100 |
100 m/m |
0.10~2.0 m/m |
| BT-150 |
150 m/m |
0.10~2.0 m/m |
| BT-200 |
200 m/m |
0.10~2.0 m/m |
| BT-250 |
250 m/m |
0.10~2.0 m/m |
| BT-300 |
300 m/m |
0.10~2.0 m/m |
| BT-350 |
350 m/m |
0.10~2.0 m/m |
| BT-400 |
400 m/m |
0.10~2.0 m/m |
|
- 1)The material lubricator is suitably used for material eith double sides oilling at same time to prolong greatly the service life of pressing mold.
- 2)Aluminum alloy body structure with anodic treatment on surface, that to be beautiful and durable. A mounting bracket is included which suitable to install on all machines body.
- 3)Special micro-adjusting oiling design, the oil volume can be controlled easily depending on the work condition. It could save oil consumption.
- 4)This lubricator adopts high-density wool cotton material with excellent anti-wearing and powerful oil absorbing which is in separate piece model design, easitly to maintenance.
- 5)Filtering mesh is deviced inside the oil barrel then the lubricant can be used again.
- 6)The option of electrical pump lubricator can combine with press for automatic & man power saving operation.
- 7)The upper roller uses multiple nipples for different oil volume adjusting, to meet customer's special requirement.

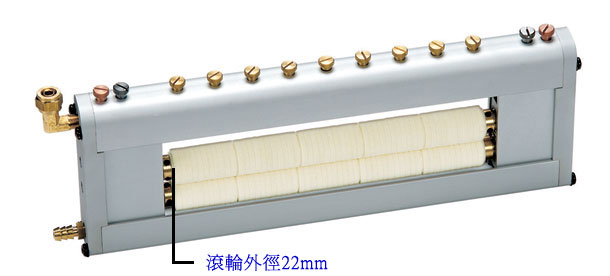

- Upperroller lubricating method:
- Segment reinforcing oil providing is from outside of upper roller, the oil is from the yellow color copper adjusting nipples on the top rail.
- Normal oil providing is from inside of the roller. The oil volume can be adjusted by the two red color copper adjusting nipples on both sides of the top rail.
- Lower roller libricating method:
Normal oil providing is from inside of the roller. The oil volume can be adjusting by the two black color copper adjusting nipples on both sides of the top rail.
|
